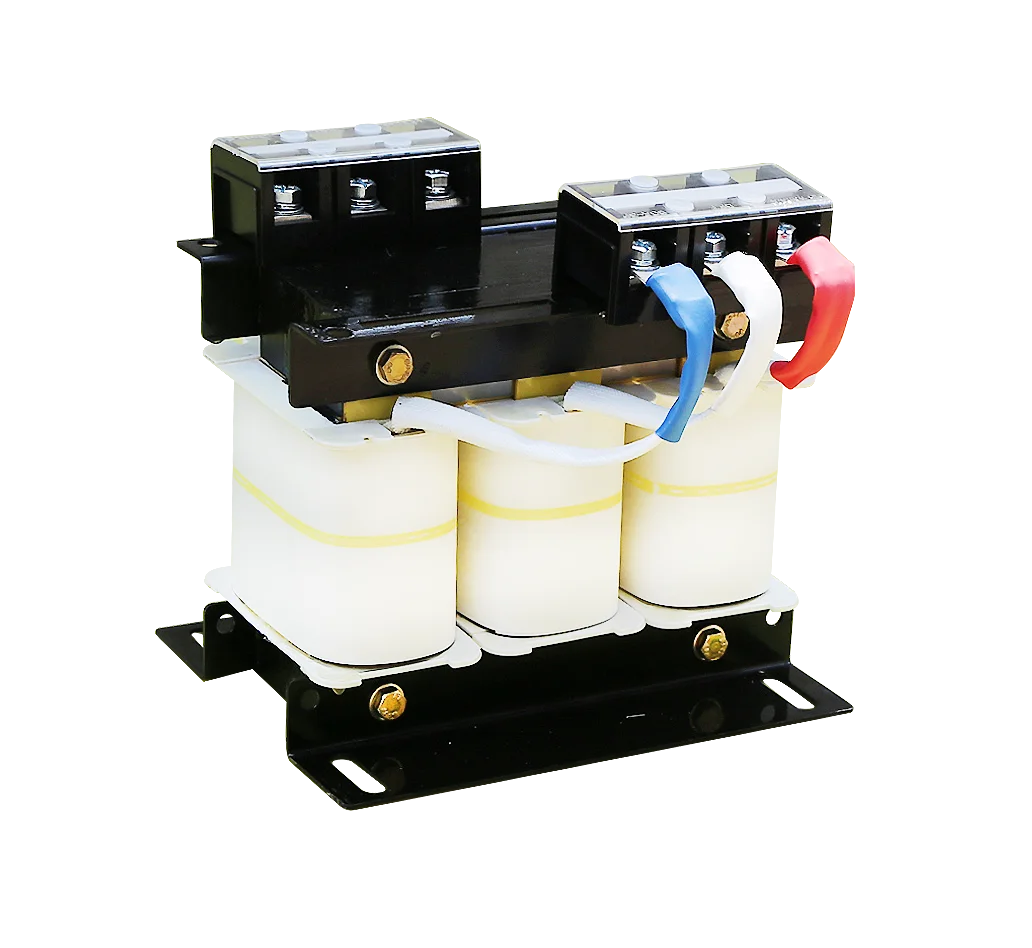

인버터 출력용 AC리액터
(TB타입)
제품 사양
| 용량 | 0.75KW ~ 630KW |
| 전압 | 저압 |
| 주파수 | 50/60Hz |
| 절연등급 | F / H |
| 타입 | DRY / MOLD |
인버터 출력용 AC리액터
(BUS타입)
제품 사양
| 용량 | 0.75KW ~ 630KW |
| 전압 | 저압 |
| 주파수 | 50/60Hz |
| 절연등급 | F / H |
| 타입 | DRY / MOLD |
리액터 SIZE (400V급 일반형)
용량 | W (가로) | W1 (가로홀) | D (세로) | D1 (세로홀) | H (높이) | 단자타입 | 취부홀 |
0.75 | 130 | 100 | 115 | 70 | 130 | TB | 9Ø |
1.5 | 130 | 100 | 115 | 70 | 130 | TB | 9Ø |
2.2 | 160 | 100 | 135 | 90 | 145 | TB | 9Ø |
3.7 | 160 | 100 | 135 | 90 | 145 | TB | 9Ø |
5.5 | 160 | 100 | 135 | 90 | 150 | TB | 9Ø |
7.5 | 200 | 170 | 130 | 85 | 180 | TB | 9Ø |
11 | 200 | 170 | 155 | 110 | 180 | TB | 9Ø |
15 | 200 | 170 | 155 | 110 | 180 | TB | 9Ø |
18.5 | 200 | 170 | 155 | 110 | 180 | TB | 9Ø |
22 | 240 | 210 | 155 | 110 | 215 | TB | 9Ø |
30 | 240 | 210 | 155 | 110 | 220 | TB | 9Ø |
37 | 240 | 210 | 155 | 110 | 220 | TB | 9Ø |
45 | 270 | 230 | 175 | 120 | 245 | BUS | 11Ø |
55 | 270 | 230 | 180 | 125 | 245 | BUS | 11Ø |
75 | 270 | 230 | 195 | 140 | 245 | BUS | 11Ø |
90 | 300 | 260 | 195 | 140 | 265 | BUS | 11Ø |
110 | 300 | 260 | 210 | 155 | 265 | BUS | 11Ø |
132 | 330 | 290 | 210 | 150 | 295 | BUS | 11Ø |
160 | 330 | 290 | 220 | 160 | 295 | BUS | 11Ø |
리액터 SIZE (400V급 고급형)
용량 | W (가로) | W1 (가로홀) | D (세로) | D1 (세로홀) | H (높이) | 단자타입 | 취부홀 |
0.75 | 130 | 100 | 115 | 70 | 13 | TB | 9Ø |
1.5 | 130 | 100 | 115 | 70 | 130 | TB | 9Ø |
2.2 | 160 | 100 | 135 | 90 | 150 | TB | 9Ø |
3.7 | 200 | 170 | 130 | 85 | 180 | TB | 9Ø |
5.5 | 200 | 170 | 155 | 110 | 180 | TB | 9Ø |
7.5 | 200 | 170 | 155 | 110 | 180 | TB | 9Ø |
11 | 240 | 210 | 155 | 110 | 210 | TB | 9Ø |
15 | 240 | 210 | 155 | 110 | 210 | TB | 9Ø |
18.5 | 270 | 230 | 185 | 130 | 240 | TB | 11Ø |
22 | 270 | 230 | 190 | 135 | 240 | TB | 11Ø |
30 | 270 | 230 | 195 | 140 | 245 | BUS | 11Ø |
37 | 270 | 230 | 205 | 150 | 245 | BUS | 11Ø |
45 | 300 | 260 | 210 | 155 | 265 | BUS | 11Ø |
55 | 330 | 290 | 220 | 160 | 285 | BUS | 11Ø |
75 | 330 | 290 | 220 | 160 | 285 | BUS | 11Ø |
90 | 330 | 290 | 235 | 175 | 285 | BUS | 11Ø |
110 | 360 | 320 | 240 | 175 | 320 | BUS | 11Ø |
132 | 360 | 320 | 260 | 195 | 320 | BUS | 11Ø |
160 | 380 | 340 | 250 | 185 | 345 | BUS | 11Ø |
기재된 제품 외 다른 사양은 전화 또는 메일로 문의 하여 주세요.
Please contact by e-mail for specifications other then products specified
031)985-1573 / mh4807@daum.net
